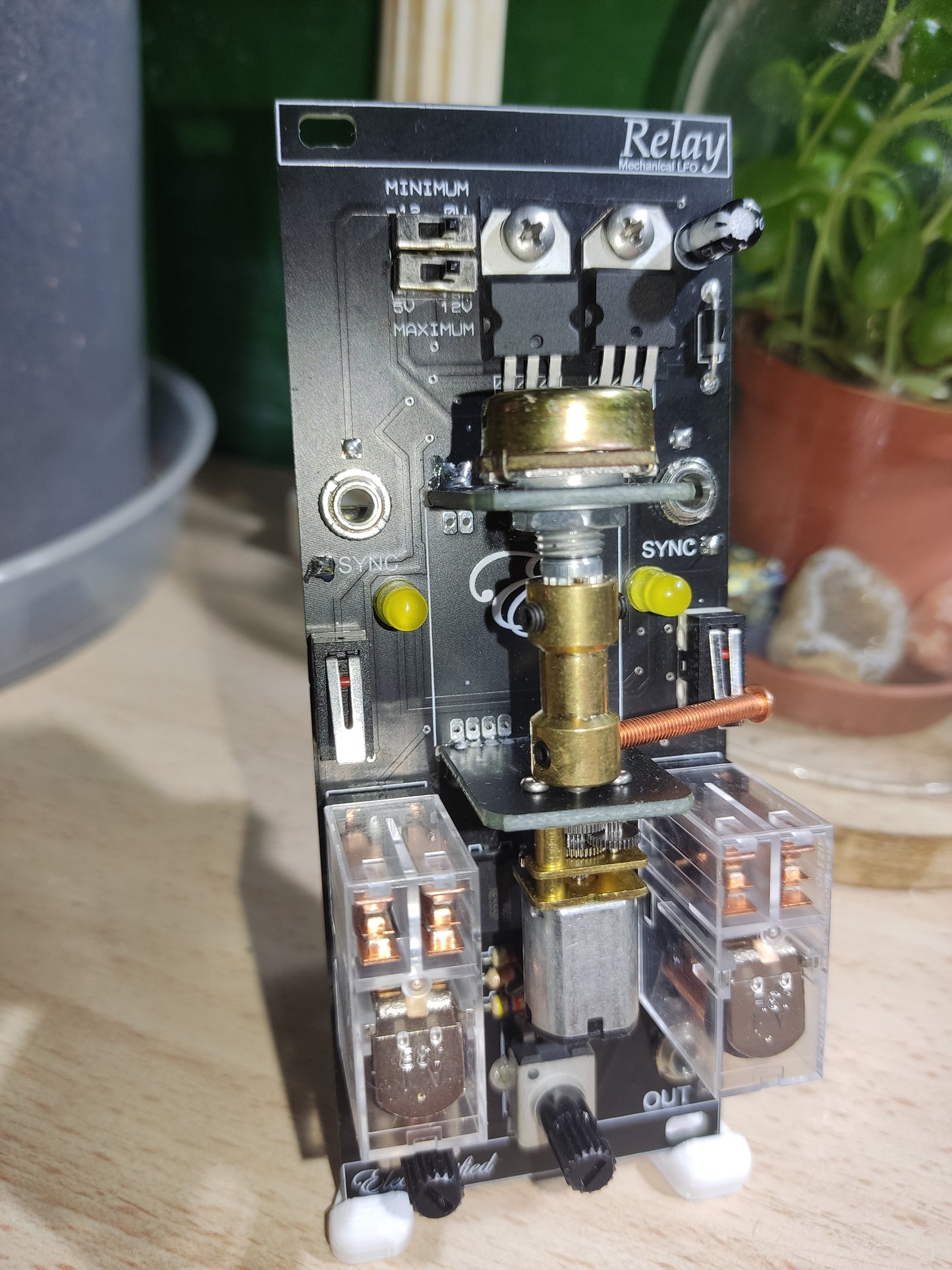

Electronified - Relay - Mechanical LFO - 3U 10HP
Electronified - Relay - Mechanical LFO - 3U 10HP
Regular price
€95,00 EUR
Regular price
Sale price
€95,00 EUR
Unit price
/
per
Couldn't load pickup availability
Technical Spechs :
View full details
- Uses +12V , -12V Voltage Rails
- Draws 300-500mA from the +12V Rail
- Back EMF Protected
- 0.4 - 1.5Hz Traingle Wave Output , Linear Potentiometer
- 16Pin Eurorack Power Connector
- 3U 10HP
- 130 Grams
- voltage range output varies slightly from model to model , but can go from -12v/0v to 5v/12v. Use the -12V option with caution.
Due to the relatively high current draw , it is suggested you try the module alone with your power supply and see if it can take the load.
Highly experimental by nature , but thoroughly tested. Exposed components and connections , avoid dropping anything metal or liquid on it.
